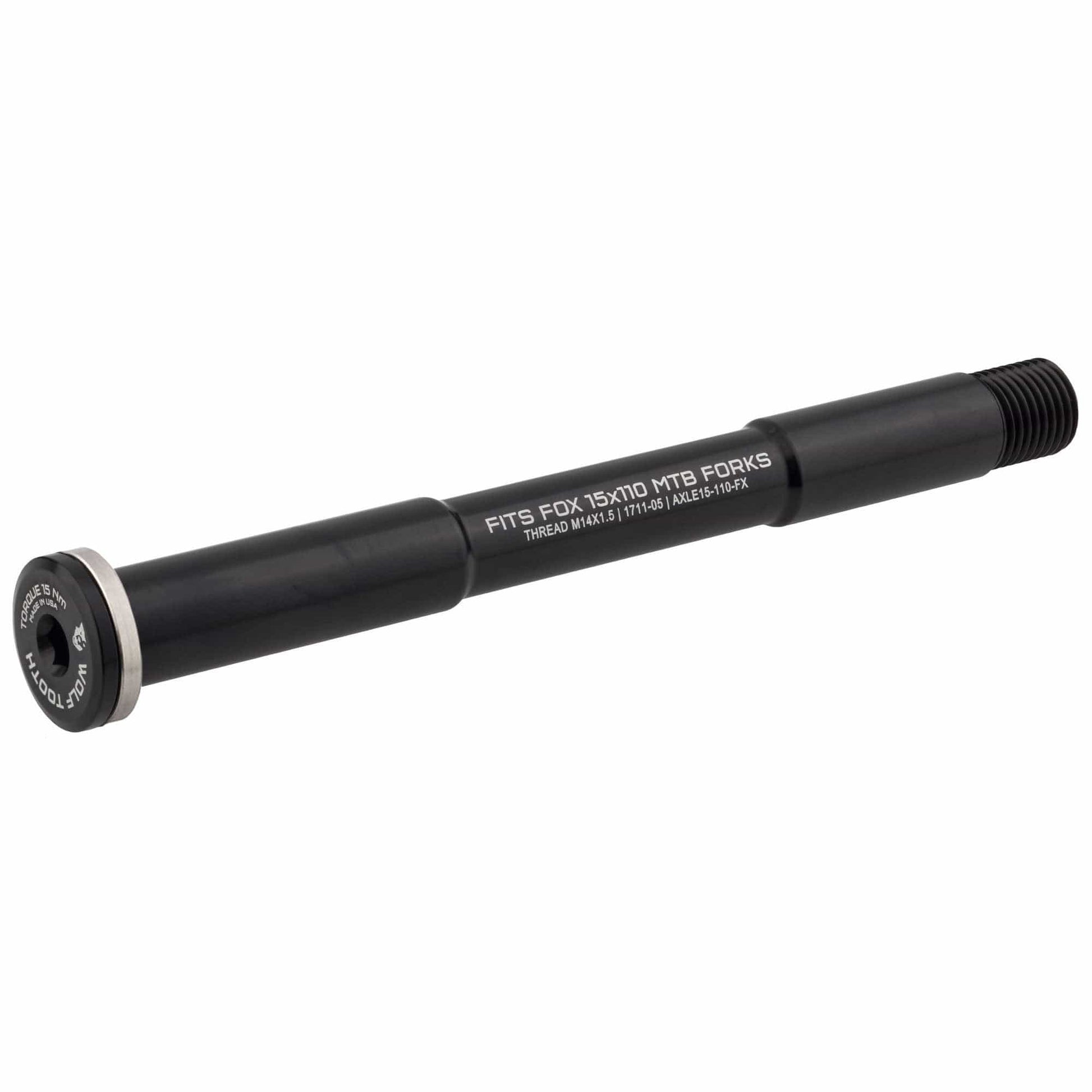

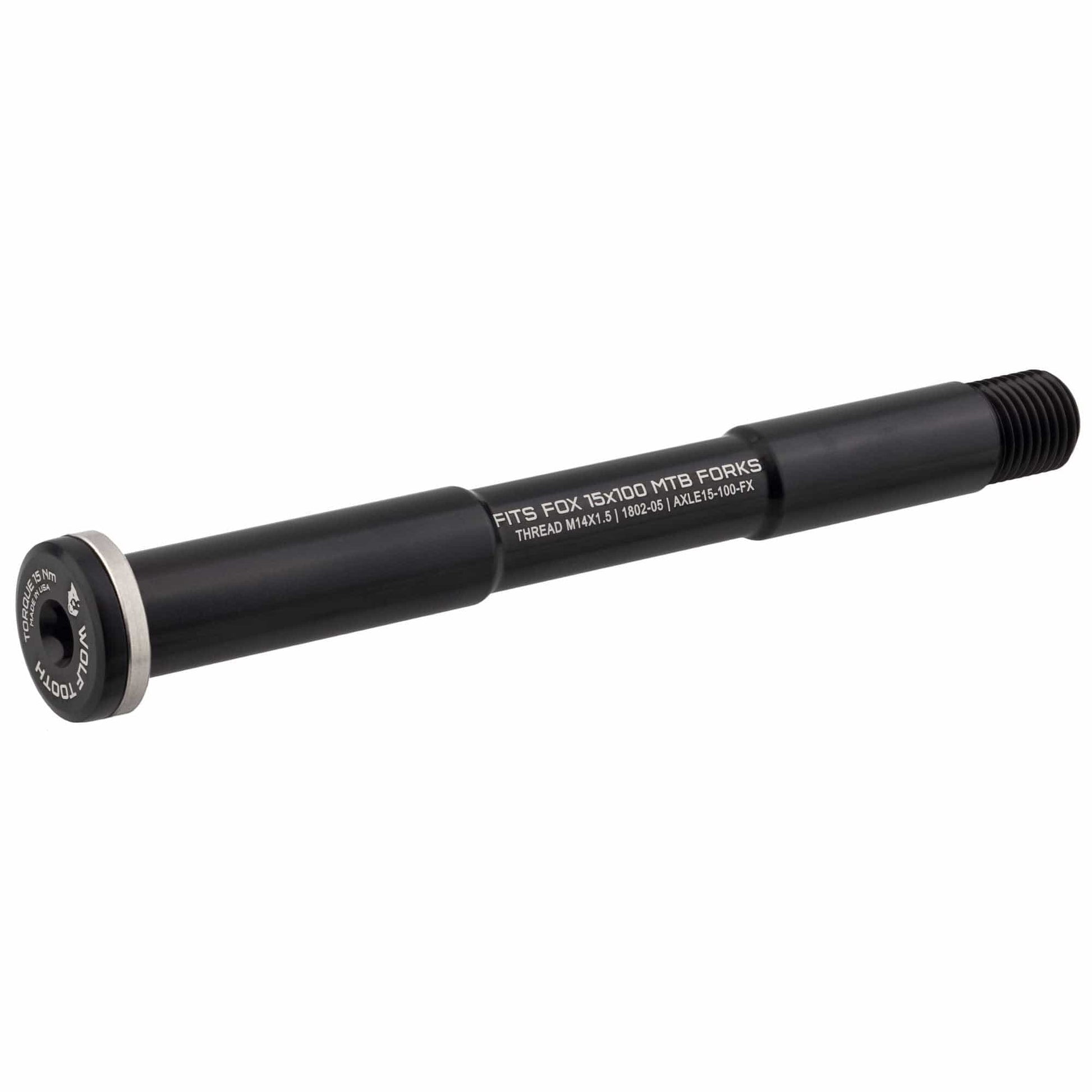

Front Axle for Fox Suspension Forks

Wolf Tooth Front Axles are lightweight, easy to use, and friendly with your fork. They are available in a variety of lengths for Standard and Boost forks. They use a captive steel washer under the head that protects your fork, transfers more of the tightening torque to the clamping load for a stiffer interface, and prevents the axle from sticking or galling when you want to remove it.

Compatibility

• Fox suspension forks
• 100 mm (standard) or 110 mm (Boost) with the below exceptions
• Not compatible with 2021 & newer Fox F36 and F38 forks

• Click here to see axle dimensions



[ A4 Metric Guide ]

Related Products

• Bike Bling
• Boostinator
• Center Lock Rotor Lockring

Tech Specs

Weight:  100 mm / standard • 49g   |  110 mm / Boost • 53g
Material: 7075 T6 aluminum with plated steel washer
Diameter: 15 mm
Tool interface: 6 mm hex key
Torque spec: 12-15 Nm
Thread spec: 14x1.5
Thread length: 15mm
Made in the USA
